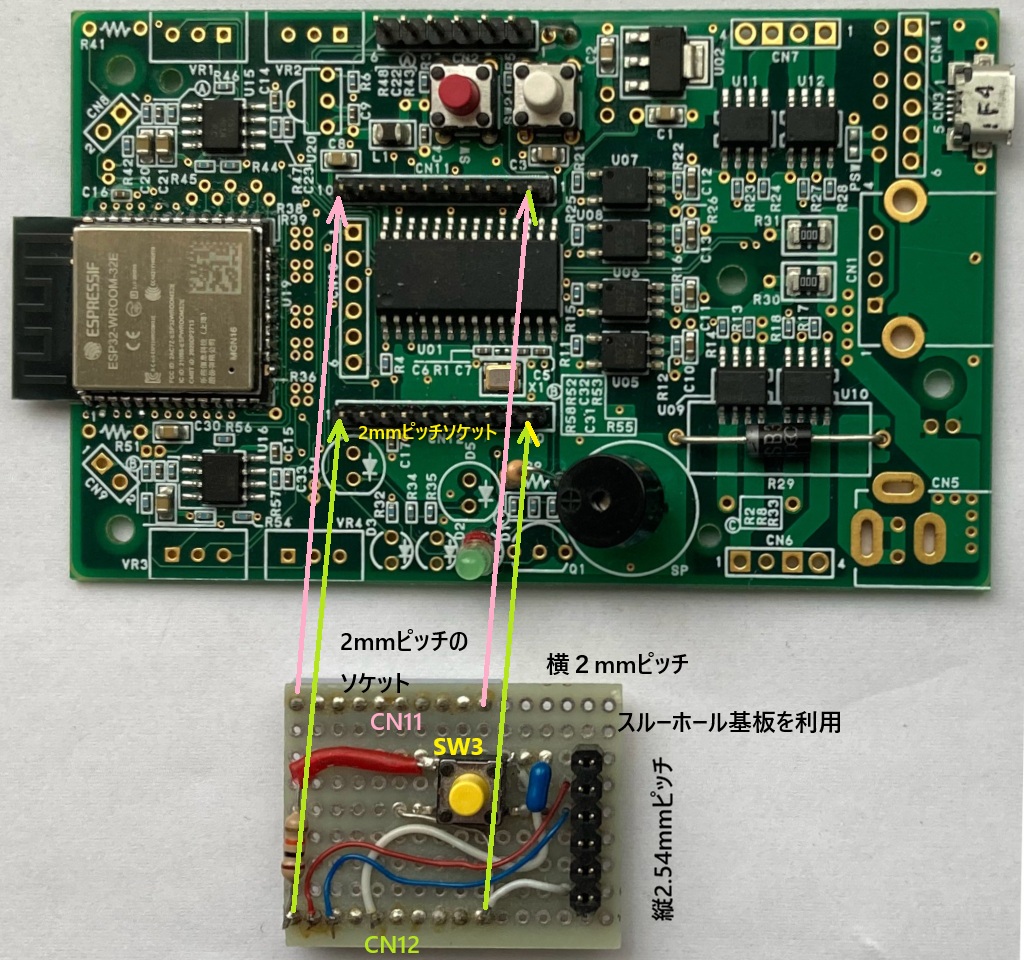

「UMEHOSHI ITA」にESP32-WROOM-32E-N16を、「UMEHOSHI ITA」へ取り付ける例を示しています。
（「UMEHOSHI ITA」は一部の端子だけをCN11とCN12を介して引き出し、そこに別途の自作基板を取り付けて、少しだけ利用することを想定しています。）

ESP32-WROOM-32E-N16を付けての実験

MicroPythonファームウェアの書き込み

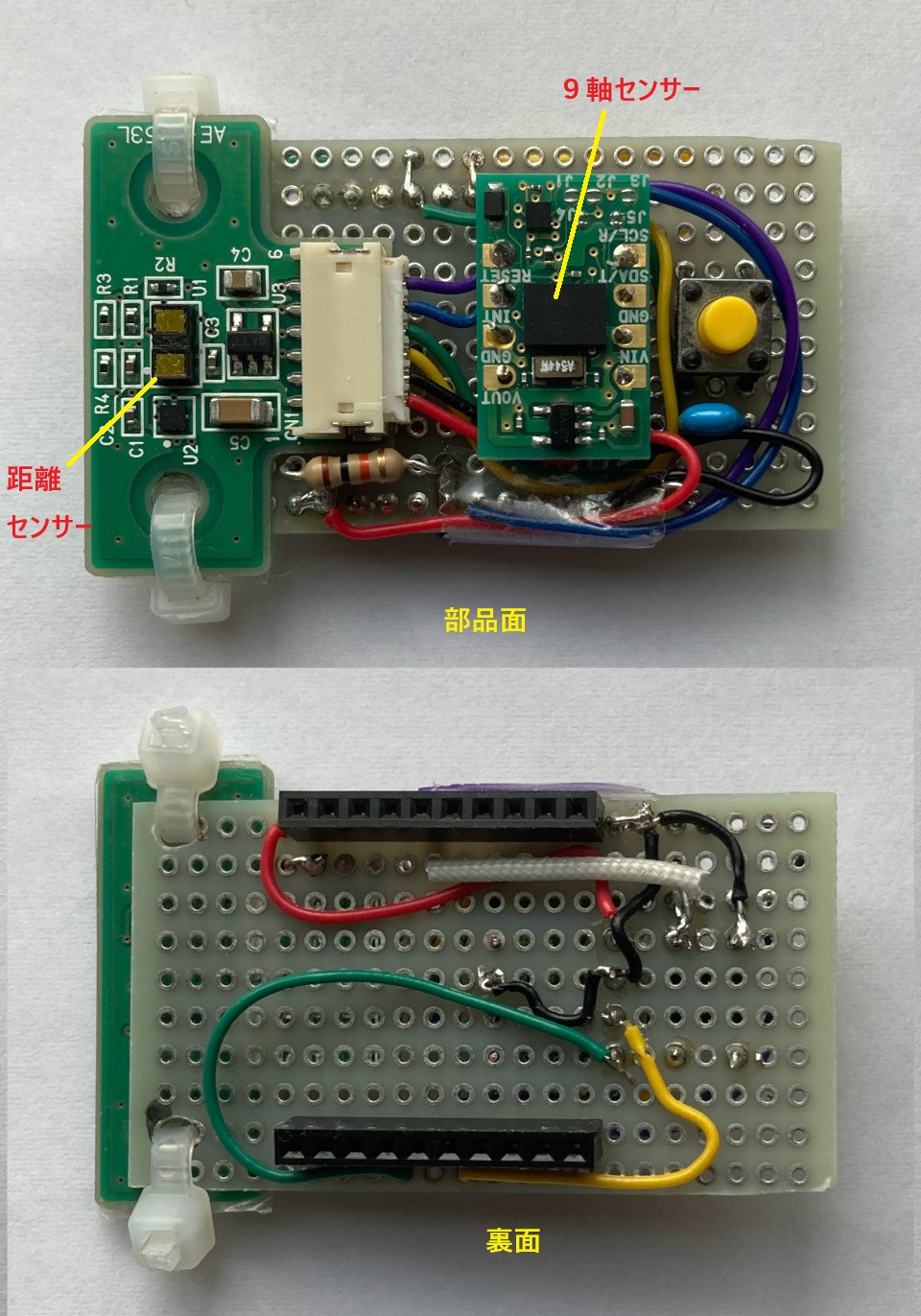

from machine import Pin, I2C

i2c = I2C(0, scl=Pin(22), sda=Pin(21), freq=100000)
print("--- I2C Bus Scan Start ---")
# I2Cバス上のデバイスをスキャン
devices = i2c.scan()

if len(devices) == 0:
    print("No I2C devices were found.")
else:
    for device in devices:
        print(f"device address: {hex(device)}")
    print("That is all.")

R:\drone>mpremote connect COM3 run scanI2C.py
--- I2C Bus Scan Start ---
device address: 0x29
That is all.

R:\drone>

R:\drone>esptool --before no_reset --port COM3 --baud 115200 flash_id
esptool.py v3.3.3
Serial port COM3
WARNING: Pre-connection option "no_reset" was selected. Connection may fail if the chip is not in bootloader or flasher stub mode.
Connecting.....
Detecting chip type... Unsupported detection protocol, switching and trying again...
Connecting....
Detecting chip type... ESP32
Chip is ESP32-D0WD-V3 (revision v3.1)
Features: WiFi, BT, Dual Core, 240MHz, VRef calibration in efuse, Coding Scheme None
WARNING: Detected crystal freq 41.47MHz is quite different to normalized freq 40MHz. Unsupported crystal in use?
Crystal is 40MHz
MAC: 38:18:2b:34:09:c0
Uploading stub...
Running stub...
Stub running...
Manufacturer: a1
Device: 4018
Detected flash size: 16MB
Hard resetting via RTS pin...

R:\drone>esptool --before no_reset --port COM3 --baud 115200 erase_flash
esptool.py v3.3.3
Serial port COM3
WARNING: Pre-connection option "no_reset" was selected. Connection may fail if the chip is not in bootloader or flasher stub mode.
Connecting...
Detecting chip type... Unsupported detection protocol, switching and trying again...
Connecting...
Detecting chip type... ESP32
Chip is ESP32-D0WD-V3 (revision v3.1)
Features: WiFi, BT, Dual Core, 240MHz, VRef calibration in efuse, Coding Scheme None
WARNING: Detected crystal freq 41.47MHz is quite different to normalized freq 40MHz. Unsupported crystal in use?
Crystal is 40MHz
MAC: 38:18:2b:34:09:c0
Stub is already running. No upload is necessary.
Erasing flash (this may take a while)...
Chip erase completed successfully in 9.6s
Hard resetting via RTS pin...

R:\drone>esptool --before no_reset --chip esp32 --port COM3 --baud 115200 write_flash -z 0x1000 ESP32_GENERIC-20260406-v1.28.0.bin
esptool.py v3.3.3
Serial port COM3
WARNING: Pre-connection option "no_reset" was selected. Connection may fail if the chip is not in bootloader or flasher stub mode.
Connecting...
Chip is ESP32-D0WD-V3 (revision v3.1)
Features: WiFi, BT, Dual Core, 240MHz, VRef calibration in efuse, Coding Scheme None
WARNING: Detected crystal freq 41.47MHz is quite different to normalized freq 40MHz. Unsupported crystal in use?
Crystal is 40MHz
MAC: 38:18:2b:34:09:c0
Stub is already running. No upload is necessary.
Configuring flash size...
Flash will be erased from 0x00001000 to 0x001aefff...
Compressed 1760192 bytes to 1152806...
Wrote 1760192 bytes (1152806 compressed) at 0x00001000 in 103.5 seconds (effective 136.0 kbit/s)...
Hash of data verified.

Leaving...
Hard resetting via RTS pin...

R:\drone>

MicroPythonの実行やファイル操作

>>>
>>> import machine
>>> machine.reset()
ets Jul 29 2019 12:21:46

rst:0xc (SW_CPU_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
configsip: 0, SPIWP:0xee
clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
mode:DIO, clock div:2
load:0x3fff0030,len:4200
load:0x40078000,len:15236
load:0x40080400,len:3332
entry 0x400805a8
MicroPython v1.28.0 on 2026-04-06; Generic ESP32 module with ESP32
Type "help()" for more information.
>>>

R:\drone>ampy -p COM3 -b 115200 ls
/boot.py

R:\drone>ampy -p COM3 -b 115200 get boot.py
# This file is executed on every boot (including wake-boot from deepsleep)
#import esp
#esp.osdebug(None)
#import webrepl
#webrepl.start()

R:\drone>

R:\drone>mpremote connect COM3 fs ls
ls :
         139 boot.py

R:\drone>mpremote connect COM3 fs rm :boot.py
rm :boot.py

R:\drone>mpremote connect COM3 reset

R:\drone>mpremote connect COM3 run serverall.py

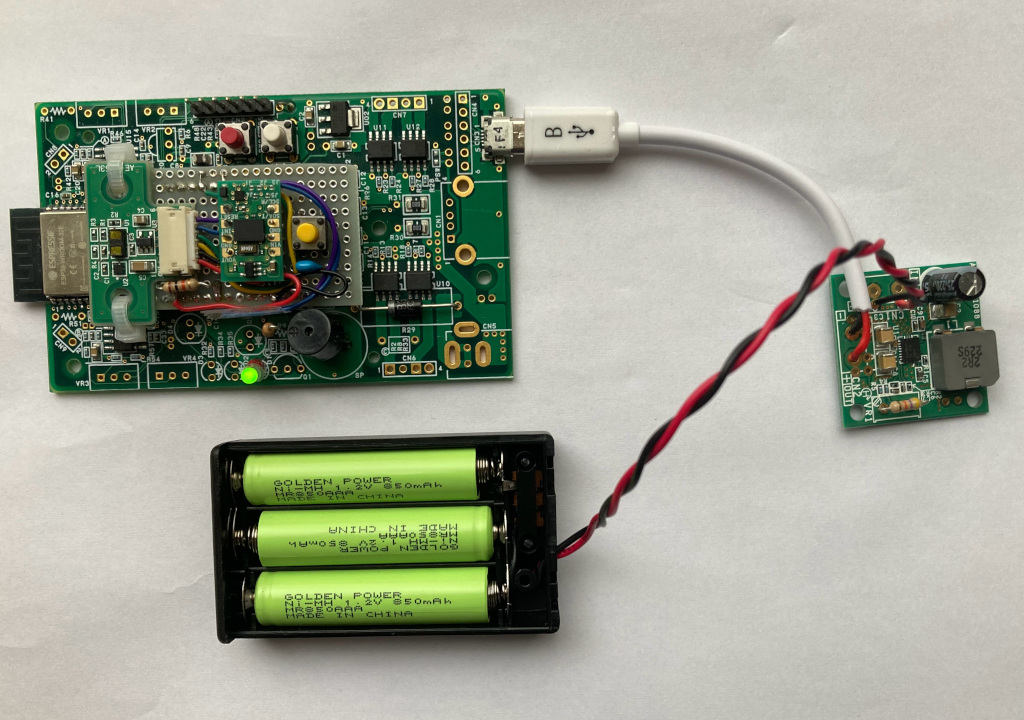

ESP32-WROOM-32E-N16をWifiのアクセスポイントにして、USBでは電源供給だけにして遠隔操作する。

import network
ap = network.WLAN(network.AP_IF) # create access-point interface
ap.config(essid='ESP32E00-AP') # set the ESSID of the access point
ap.config(max_clients=10) # set how many clients can connect to the network
ap.ifconfig(('192.168.130.1', '255.255.255.0', '192.168.130.1', '8.8.8.8'))
# set (ip address, subnet mast, default gateway, dns ip address)
ap.active(True)         # activate the interface
import ubinascii
b=ap.config('mac')
#print("mac address:", ubinascii.hexlify(b))
conf=ap.ifconfig() # get various interface addresses
#print("IP,netmask,gw,DNS:", conf)
# ------------------------------------------------------------------------------

import os   # server
import sys
import socket
import _thread
import time
#import esp

path_datas = "./"
flag_listen_loop=True
sock2=None # TCPクライアントと通信するソケット

def tcp_send_message(sock,msg): # sockのクライアント側にメッセージ送信
    bin=('M'+msg+"\r\n").encode("utf-8")
    if sock : sock.sendall(bin)

def send(msg):# sock２のクライアント側にメッセージ送信
    msg=f"{msg}" # 文字列へ変換
    if sock2 is None: return
    a=msg.split("\n")
    for s in a:
        tcp_send_message(sock2,s)

def ls_filelist(sock,path): # ファイルリストの文字列をクライアントに送信
    tcp_send_message(sock,"ls_filelist:" + path)
    if path == "": path="."
    try:
        for f_name in os.listdir(path) :
            file_info = os.stat(f_name)
            file_size = file_info[6]
            d_inf = 'dir' if (file_info[0] & 0x4000 ) else '   ' # ディレクトリ判定
            msg = f"{d_inf} {file_size:7}  {f_name}"
            tcp_send_message(sock, msg)
    except Exception as e:
        tcp_send_message(sock,"ls_filelist Error:" + str(e))

def cat_filepath(sock, filepath): # filepathのテキスト内容をクライアントに送信
    tcp_send_message(sock, "cat_filepath:" + filepath)
    try:
        with open(filepath) as fr:
            ss = fr.readlines()
        for s in ss:
            if s[-1] == '\n' : s=s[:-1] # 改行を除く
            tcp_send_message(sock, s)
    except Exception as e:
        tcp_send_message(sock,"cat_filepath Error:"+ str(e))

def del_filepath(sock, filepath): # filepathのファイルを削除
    tcp_send_message(sock, "del_filepath:" + filepath)
    try:
        os.remove(filepath)
    except Exception as e:
        tcp_send_message(sock,"del_filepath Error:"+ str(e))

def import_name(sock, name):# nameのモジュールのPythonソースを実行
    tcp_send_message(sock, "import_name:" + name)
    try:
        mod=__import__(name) # 動的なインポートで実行
        del sys.modules[name] # 再度インポートできるように開放
    except Exception as e:
        tcp_send_message(sock,"import_name Error:"+ str(e))

def send_file(sock, filepath):# filepathのファイルをクライアントに送信
    try:
        idx_last_sep = filepath.rfind('\\')
        filename = filepath if idx_last_sep == -1 else filepath[idx_last_sep+1:]
        file_info = os.stat(filepath)
        filesize = file_info[6]
        s = "f{} {}".format(filename, filesize)
        bin=(s+"\r\n").encode("utf-8")
        sock.sendall(bin) #send filename filesize
        if filesize > 0:
            with open(filepath, "rb") as f:
                bin = f.read(filesize)
            sock.sendall(bin) # send binary file
        #
        tcp_send_message(sock,"server:send_file:"+ filepath)
    except Exception as e:
        tcp_send_message(sock,"server:send_file Error:"+ str(e))

def recieve_file(sock):# TCPでファイルを受信（1byte受信の繰り返し）
    buf=b""
    while True:
        bin = sock.recv(1)
        if bin == b'': break
        buf += bin
        if buf[-2:] == b"\r\n":
            s = buf[0:-2].decode('utf-8')
            a=s.split(' ')
            filename, filesize = a[0], int(a[1])
            f=open( path_datas + filename, "wb") # 受信ファイルの保存
            n=0
            tcp_send_message(sock,f"Starting to receive {filename}:size={filesize} Please wait.")
            while n < filesize:
                bin = sock.recv(1)
                if bin == b'': break
                f.write(bin)
                n += 1
                if n % 10000 == 0: tcp_send_message(sock,f"\n{n}bytes were received.")
            #
            f.close()
            tcp_send_message(sock,f"\n{filename} size:{filesize}, {n}bytes receive end.")
            if filename.endswith(".umh"):
                send_cmdfile(sock,filename) # ファイルのコマンド内容をUMEHOSHI ITAへ送信
            break
        #
    #print(filename + ":size=" + str(filesize)) # debug ---------------

def recieve_file_Max(sock):# TCPでファイルを受信（バッファを最大して受信）
    buf=b""
    while True:
        bin = sock.recv(1)
        if len(bin) != 1: break
        buf += bin
        if buf[-2:] == b"\r\n":
            s = buf[0:-2].decode('utf-8')
            a=s.split(' ')
            filename, filesize = a[0], int(a[1])
            bin=b""
            while len(bin) < filesize:
                bin += sock.recv(filesize-len(bin))
            with open( path_datas + filename, "wb") as f: # 受信ファイルの保存
                f.write(bin)
            tcp_send_message(sock,f"Server:'{filename}' {len(bin)}bytes received.")
            if filename.endswith(".umh"):
                send_cmdfile(sock,filename) # ファイルのコマンド内容をUMEHOSHI ITAへ送信
            break
        #
    #print(filename + ":size=" + str(filesize)) # debug ---------------

def recieve_message(sock): # 受信メッセージに対する処理
    global flag_listen_loop
    buf=b""
    while True:
        bin = sock.recv(1)
        if len(bin) != 1:
            flag_listen_loop = False
            return False
        #
        buf += bin
        if buf[-2:] == b"\r\n":
            s = buf[0:-2].decode('utf-8').strip()
            if s == "end_listen_loop": # 受信文字列がこれと一致するなら終了
                flag_listen_loop = False
                return False
            #
            if s.startswith("ls -l"): # ファイルリスト要求に対する送信処理
                ls_filelist(sock, s[5:].strip() )
                return True
            #
            if s.startswith("cat "):# ファイル内容表示要求に対する送信処理
                cat_filepath(sock, s[4:] )
                return True
            #
            if s.startswith("del "):# ファイル削除要求に対する処理
                del_filepath(sock, s[4:] )
                return True
            #
            if s.startswith("import "):# Pythonファイルの実行要求に対する処理
                import_name(sock, s[7:] )
                return True
            #
            if s.startswith("get "): # ファイル要求に対するファイル送信
                send_file(sock, s[4:] )
                return True
            #
            if s.startswith("exc "): # .umhファイルの内容で、[UMEHOSHI ITA]のUART1に出力する。
                send_cmdfile(sock, s[4:] )
                return True
            #
            if len(s)>1 and s[0] in "SRG":
                print( s ) # 受信文字列を、UME専用Hexコマンドと判断して、UMEHOSHI ITAへ送信
            else:
                tcp_send_message(sock,s) # 受信文字列を、TCPクライアントへECHO送信
            #
            return True

def receiveData(sock): # 受信処理ループ
    # tcp_send_message(sock,"start sever receiveData" )
    while True:
        bin = sock.recv(1)#1byte recieve
        if len(bin) != 1: break
        if bin == b"f" : recieve_file(sock)
        elif bin == b"F" : recieve_file_Max(sock)
        elif bin == b"M" : recieve_message(sock)
        else:
            tcp_send_message(sock,"server receive error:" + str(bin) )
    #

# ------------- UART -------------------
flag_input_loop=False

log_fw=open( "log.txt", "a") # TCP通信ができない時のesp32への入力状態を記録するログ
#
def input_loop(): # UMEHOSHI ITA のUART1出力を読み取ってTCPクライアントに送信するループ
    global flag_input_loop
    try:
        flag_input_loop = True
        s=""
        while flag_input_loop:
            c = sys.stdin.read(1) # ESP32の出力を受信
            s += c
            if c != '\n': continue
            if sock2 is None:
                log_fw.write(s)
                time.sleep(0.1)
                s=""
                continue
            s = s[:-1:] # 最後の改行を除く
            if s.strip() != '' : # Response message from ume received by esp32
                tcp_send_message(sock2, s + ":Response")
            #
            time.sleep(0.001)
            if s == "end_input_loop": break
            s=""
        #
        tcp_send_message(sock2, "End! input_loop\r\n")
    except Exception as e:
        # print("Error :" , e) # debug ---------------
        tcp_send_message(sock2,"input_loop Error:"+ str(e))
        log_fw.write("input_loop Error:"+ str(e) + "\n")
        log_fw.close()

# ss のUME専用Hexコマンドを[UMEHOSHI ITA]のUART1に出力する。
def send_cmd( ss, cmdchar="SRG"):# example ss=[S048000800000FFAF000086]
    a = ss.split('\n')
    for s in a:
        s=s.strip()
        if s == "" or not s[0] in cmdchar : continue
        print( s ) # Command string sent from esp32 to ume
        tcp_send_message(sock2, s + ":Command" )
        time.sleep(0.1)

# .umhファイルの内容で、[UMEHOSHI ITA]のUART1に出力する。
def send_cmdfile(sock,filepath, cmdchar="SRG"):
    try:
        with open(filepath , "r", encoding="utf-8") as f:
            ss = f.readlines()
        if filepath.endswith(".umh") : ss = ss[1:]
        ss="".join(ss)
        send_cmd( ss, cmdchar) # ss のUME専用Hexコマンドを[UMEHOSHI ITA]のUART1に出力
    except Exception as e:
        # print("Error :" , e) # debug ---------------
        tcp_send_message(sock,"send_cmdfile Error:"+ str(e))

# ------------- Main -------------------
portnumber=59154
ip = "192.168.130.1"
server_addr =(ip, portnumber)
serversock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
serversock.bind(server_addr)
time.sleep(3.1) # 3.1秒待機 ([UMEHOSHI ITA]の初期を待つため)

thread_id = _thread.start_new_thread(input_loop, ()) # 入力用スレッド起動

serversock.listen(1) # TCPサーバ受け入れ待機
while flag_listen_loop:
    #
    sock2, address = serversock.accept() # クライアントの接続許可
    serversock.close()
    tcp_send_message(sock2, "\nConnect!") # TCPクライアントへのメッセージ
    try:
        receiveData( sock2 ) # 受信応答処理のループ
    except: pass
    sock2.close()

R:\drone>mpremote connect COM3 fs cp serverall.py :boot.py
cp serverall.py :boot.py

R:\drone>

import os 		# client_ume_esp32.py
import socket
import sys
import time
import threading

path_datas="./"

# ----- 受信関連 ---------------------------------
def recieve_file(sock):
    buf=b""
    while True:
        bin = sock.recv(1)
        if len(bin) != 1: break
        buf += bin
        if buf[-2:] == b"\r\n":
            s = buf[0:-2].decode('utf-8')
            a=s.split(' ')
            filename, filesize = a[0], int(a[1])
            bin=b""
            while len(bin) < filesize:
                bin += sock.recv(filesize-len(bin))
            with open( path_datas + filename, "wb") as f:
                f.write(bin)
            #tcp_send_message(sock,filename + ":size=" + str(len(bin)))
            break
    print(filename + ":size=" + str(filesize)) # debug ---------------

def recieve_message(sock): # TCP文字列メッセージ受信
    buf=b""
    while True:
        bin = sock.recv(1)#1byte受信
        if len(bin) != 1: break
        buf += bin
        if buf[-2:] == b"\r\n":# 1行の文字列受信終了？
            s = buf[0:-2].decode('utf-8')#バイナリから
            print(s)
            break

def receiveData(sock): # 全てのTCP受信のスレッド用関数
    #print( "start receiveData" )
    while True:
        bin = sock.recv(1)#1byte受信
        if len(bin) != 1: break
        if bin == b"f" : recieve_file(sock)
        elif bin == b"M" : recieve_message(sock)
        else: print(bin , end="")
    #
    print( "receiveData ended." )

# ----- 送信関連 ---------------------------------
def send_file(sock, filepath):
    try:
        filesize = os.path.getsize(filepath)
        filename = os.path.basename(filepath)
        s = "f{} {}".format(filename, filesize)
        bin=(s+"\r\n").encode("utf-8")#binaryへ変換
        # print(bin, end="  ")
        sock.sendall(bin) #filename filesize 送信
        with open(filepath, "rb") as f:
            bin = f.read(filesize)
        # print("送信data：" , bin )
        sock.sendall(bin) # ファイル内容一括送信
        print("送信byte：" , len(bin) )
    except Exception as e:
        print( "send_file error:" + str(e))

def send_file_Max(sock, filepath):
    try:
        filesize = os.path.getsize(filepath)
        filename = os.path.basename(filepath)
        s = "F{} {}".format(filename, filesize)
        bin=(s+"\r\n").encode("utf-8")#binaryへ変換
        # print(bin, end="  ")
        sock.sendall(bin) #filename filesize 送信
        with open(filepath, "rb") as f:
            bin = f.read(filesize)
        # print("送信data：" , bin )
        sock.sendall(bin) # ファイル内容一括送信
        #print("送信byte：" , len(bin) )
    except Exception as e:
        print( "send_file_Max error:" + str(e))

def send_message(sock,msg):
    bin=('M'+msg+"\r\n").encode("utf-8")#binaryへ変換
    sock.sendall(bin)#一括送信
    print(f"Send:{msg}")

# ----- メイン ---------------------------------
portnumber=59154
ip="192.168.130.1"
s = input(f"IP (defualt:{ip})Address＞")
if s != "": ip = s
sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.connect((ip, portnumber))
#print("接続成功")
t_id = threading.Thread(target=receiveData, args=(sock,) )
t_id.start()
time.sleep(1.0)
loopFlag = True
cmd=""
while loopFlag:
    s = input("入力：M/F/'quit'/?＞")
    if s != "": cmd = s
    if cmd == 'M':
        msg = input("UME HEX Command /exc /ls -l/cat /get /del /import ＞")
        send_message(sock,msg)
        cmd=' '
    elif cmd == 'f' or cmd == 'F':
        s='F'
        print(os.listdir(path_datas))
        filename = input("送信したいファイル名入力＞")
        if not os.path.isfile(path_datas + "/" + filename):
            print( filename, "no exist")
            continue
        if cmd == 'f' : send_file(sock, path_datas + "/" + filename)
        if cmd == 'F' : send_file_Max(sock, path_datas + "/" + filename)
        cmd=' '
    elif cmd == 'quit':
        send_message(sock,'end_listen_loop')
        loopFlag=False
    else:

        pass
    #
    time.sleep(1.0)

sock.close()
sys.exit(0)

R:\drone>python client_ume_esp32.py
IP (defualt:192.168.130.1)Address＞

Connect!
入力：M/F/'quit'/?＞M
UME HEX Command /exc /ls -l/cat /get /del /import ＞ls -l
Send:ls -l
ls_filelist:
      11211  boot.py
         36  log.txt
       1427  test01.umh
         23  test02.umh
入力：M/F/'quit'/?＞

• .umhファイル実行
• ディレクトリー表示
• ファイル内容表示
• ファイルのダウンロード
• ファイル削除
• pythonモジュール実行
